RAID 5 vs. RAID 6: Use Case Analysis

Last Updated: October 26, 2023By

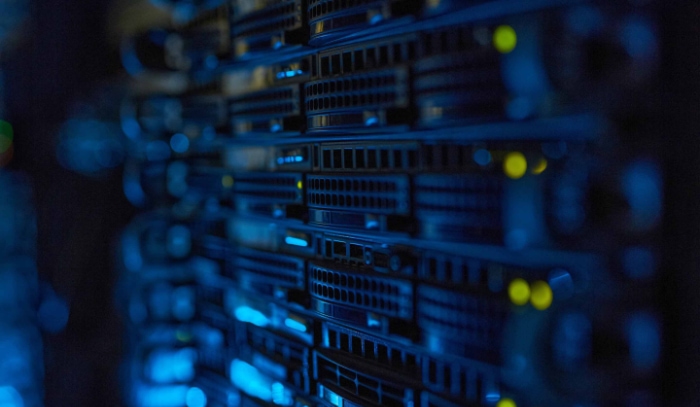

Close up of Rack server

Data storage solutions are a critical backbone for both small and large enterprises, powering everything from daily operations to long-term strategic decisions. One technology that has significantly shaped the landscape of data storage is RAID—Redundant Array of Independent Disks.

Given its importance in ensuring data integrity and improving performance, selecting the right RAID level can be a pivotal choice for organizations. Among the various RAID configurations available, RAID 5 and RAID 6 often stand out as strong contenders for businesses seeking a balance between performance, reliability, and cost-effectiveness.

What is RAID 5?

RAID 5 is one of the most commonly deployed RAID configurations, especially popular among small to medium-sized businesses. Known for its blend of performance, storage efficiency, and fault tolerance, RAID 5 offers a compelling set of features.

Architectural Design of RAID 5

RAID 5 uses block-level striping with distributed parity to manage data. In simpler terms, the data is divided into blocks and each block is written to a separate disk drive.

Parity information, which is a mathematical function that can rebuild data if a drive fails, is also written into blocks and distributed across the array of disks. This design allows RAID 5 to tolerate the failure of one disk in the array without losing any data.

Storage Efficiency

One of the main advantages of RAID 5 is its efficient use of storage space. Unlike RAID 1, which mirrors data, thus using double the storage, RAID 5 uses only one extra disk’s worth of space to store the parity information.

This makes RAID 5 more storage-efficient while still providing fault tolerance. For example, in a four-disk array, three disks’ worth of space would be used for storing data, and one disk would effectively be used for parity.

Read Performance

RAID 5 configurations are generally known for good read performance. Because data is striped across multiple disks, multiple read operations can be performed in parallel, speeding up the process.

This makes RAID 5 suitable for environments where high read performance is essential, such as database servers or file servers catering to multiple users.

Single-Drive Fault Tolerance

One of the primary benefits of RAID 5 is its ability to withstand the failure of a single drive. When a drive fails, the data can be rebuilt using the parity information stored on the remaining drives.

This ensures that no data is lost, making RAID 5 a reasonable choice for businesses that cannot afford extensive downtime but also don’t require extremely high levels of fault tolerance.

Limitations of RAID 5

While RAID 5 offers several advantages, it’s important to also consider its limitations. Write performance can be slower compared to other RAID levels due to the overhead of calculating and writing parity information.

Additionally, if a second drive fails before the first failed drive has been replaced and the array rebuilt, all data will be lost.

What is RAID 6?

RAID 6 takes the concept of RAID 5 to the next level by adding an extra layer of fault tolerance. This RAID configuration is often the choice for organizations that need to prioritize data protection without compromising too much on performance or storage capacity.

Architecture of RAID 6

In RAID 6, data is also striped across multiple disks, similar to RAID 5. However, RAID 6 employs dual distributed parity, meaning it calculates two sets of parity information for each data block.

These two sets are stored on separate disks within the array. As a result, RAID 6 can withstand the simultaneous failure of up to two drives, offering a higher level of data protection.

Efficient Fault Tolerance

The standout feature of RAID 6 is its enhanced fault tolerance. Because it employs dual parity, RAID 6 offers protection against the failure of two drives.

This makes it an ideal choice for mission-critical applications and industries such as healthcare and finance, where data loss can have severe consequences.

Storage Capacity

Similar to RAID 5, RAID 6 also offers a good balance between storage efficiency and data protection. In a RAID 6 configuration with four disks, you would effectively have the storage capacity of two disks available for data, while the other two would be used for dual parity.

As you add more disks, the percentage of storage space devoted to data increases, making RAID 6 a scalable option.

Read and Write Speeds

RAID 6 provides robust read performance, similar to RAID 5, as data is striped across multiple drives. However, write performance is generally slower in RAID 6 compared to RAID 5.

This is due to the computational overhead of generating two sets of parity information for every data block written. Despite this, the drop in write speed is often considered an acceptable trade-off for the enhanced data protection RAID 6 provides.

Limitations of RAID 6

Even with its added layer of protection, RAID 6 has its downsides. The need for dual parity calculations results in a computational overhead, which could lead to slower write speeds and increased CPU utilization.

Additionally, RAID 6 setups can be more expensive to implement and maintain because they require at least four drives to function and an advanced RAID controller capable of handling dual parity calculations.

RAID 5 vs RAID 6: The Technical Comparison

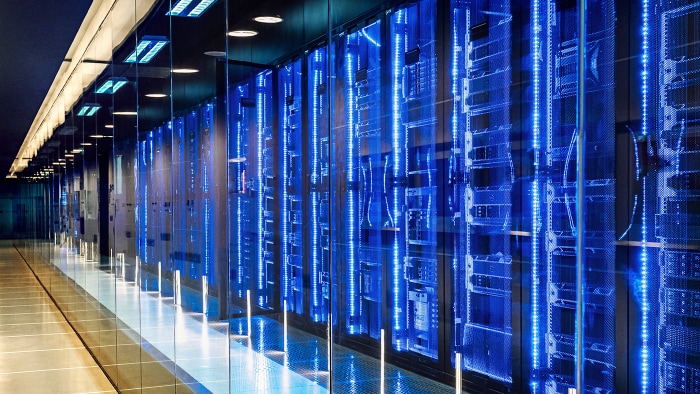

Data center in server room

Now that we have an in-depth understanding of both RAID 5 and RAID 6, it’s time to put them head-to-head in a technical comparison. By evaluating their features, performance metrics, and reliability factors, we can better identify the distinguishing characteristics of each.

Capacity Utilization

In a RAID 5 setup, the total storage capacity is the sum of the individual disks minus the space of one disk, which is used for parity. For example, in a 4-disk RAID 5 setup with each disk having a capacity of 1TB, you’d have 3TB of usable storage.

RAID 6 requires two disks for parity, which means in a similar 4-disk setup, only 2TB would be available for data storage. As the number of disks in the array increases, both RAID 5 and RAID 6 become more storage-efficient, although RAID 5 will always have an edge in terms of usable capacity.

Fault Tolerance

RAID 5 can sustain the failure of one drive without loss of data, while RAID 6 can endure the failure of two drives. This is an essential distinction for organizations where data is highly critical.

For businesses that can’t afford the potential downtime or loss associated with a two-disk failure, RAID 6 is undoubtedly the more reliable option.

Read and Write Speeds

Both RAID 5 and RAID 6 offer robust read speeds due to data striping across multiple disks. However, RAID 6 often lags in write performance because of the computational overhead associated with calculating dual parity.

For tasks that require frequent and fast write operations, RAID 5 has an advantage. On the other hand, if read speed is a priority and write speed is less of a concern, RAID 6 remains a strong contender.

Computational Overhead

The computational complexity is greater in RAID 6 than in RAID 5 due to the dual parity calculations. This can lead to increased CPU utilization, which might be a concern depending on the computational power of the server where the RAID array is deployed.

For simpler setups with less computational power, RAID 5 is often the more sensible choice.

Cost of Setup and Maintenance

RAID 6 typically incurs higher costs both in terms of initial setup and ongoing maintenance. This is because RAID 6 requires a minimum of four disks and often needs a more advanced RAID controller capable of handling dual parity calculations.

RAID 5, being less complex, is generally more budget-friendly but offers less fault tolerance.

Use Cases for RAID 5 and RAID 6

While the technical specifications of RAID 5 and RAID 6 provide a foundation for comparing them, understanding how they fit into real-world applications can make the decision-making process much more straightforward.

Small to Medium-Sized Business Environments

RAID 5 is often the go-to option for small to medium-sized businesses due to its lower setup and maintenance costs. These businesses usually have less critical data and can afford to take a slight risk on fault tolerance for the benefit of better write performance and storage efficiency.

Scenarios such as internal file sharing, office servers, and less demanding database applications often align well with RAID 5.

Mission-Critical Applications

For systems where data loss could result in severe consequences—such as in healthcare, finance, or government sectors—RAID 6 is a natural fit. Its ability to tolerate the failure of two drives provides an extra safety net, making it a preferable option for mission-critical applications.

For databases that require a high level of read access and robust data protection, RAID 6 is often the recommended choice.

Media and Streaming Services

When it comes to services that require high read speeds, such as media streaming, both RAID 5 and RAID 6 can be competent choices. However, RAID 5 might have a slight edge if the service also demands frequent write operations.

This is because RAID 5 generally offers better write performance compared to RAID 6.

Backup and Archival Systems

RAID 6 is an excellent choice for backup and archival systems where data integrity is of the utmost importance. The slower write speeds are often less of a concern for these types of setups as the focus is usually on long-term reliability and data protection, areas where RAID 6 excels.

Cost-Sensitive Deployments

For organizations working on a tight budget, RAID 5 is generally more cost-effective. The hardware requirements are less stringent, and the setup and maintenance are typically simpler.

However, it’s essential to weigh these cost benefits against the potential risks associated with lower fault tolerance.

Making the Right Choice

Selecting between RAID 5 and RAID 6 is not merely a matter of comparing technical specifications; it also involves a thoughtful evaluation of your organization’s unique needs, available resources, and long-term goals.

Assessing Business Requirements

The first step in making an informed choice is to thoroughly assess the business requirements. Are you operating in a sector where data is mission-critical? If so, the additional fault tolerance of RAID 6 is invaluable.

However, if your business has less stringent data protection needs and operates on a tight budget, RAID 5 may be sufficient.

Evaluating Hardware Constraints

Consider your current hardware infrastructure. RAID 6 typically demands a more robust RAID controller capable of handling dual parity calculations, whereas RAID 5 has less stringent hardware requirements.

Make sure to evaluate whether your existing hardware is compatible with your chosen RAID level or if upgrades will be needed.

Performance Metrics

Performance needs vary from one organization to another. If your operations require faster write speeds and you can afford to have slightly less fault tolerance, RAID 5 is a better fit.

On the other hand, if read speed and data protection are the priorities, RAID 6 stands out as the better option.

Cost Analysis

Cost should not be the sole factor in your decision, but it’s undoubtedly an important consideration. RAID 5 is generally more budget-friendly in terms of both setup and maintenance.

However, it’s crucial to factor in the potential costs associated with data loss, which could be much higher for RAID 5 compared to RAID 6, depending on your specific use-case scenarios.

Future Scalability

Both RAID 5 and RAID 6 offer scalable solutions, but the scalability needs to be planned in the context of your organization’s future growth. If you anticipate a significant increase in data storage needs or foresee your organization transitioning into a sector requiring higher data protection, planning for RAID 6 from the onset could be a wise move.


Choosing between RAID 5 and RAID 6 involves a thorough evaluation of numerous factors, ranging from technical specifications to real-world use cases and organizational needs. While RAID 5 offers benefits such as higher storage efficiency and faster write speeds, it does so at the expense of lower fault tolerance.

Conversely, RAID 6 provides a more robust safety net for data protection but often requires more substantial hardware resources and computational overhead. Ultimately, the choice between these two RAID levels should align with your specific requirements, including performance metrics, reliability concerns, and budget constraints.

By carefully weighing these aspects, you can select a RAID configuration that will serve your organization effectively, both now and in the years to come.
