NVMe vs. SATA SSD: Speed, Price, and Value Compared

Mechanical hard drives have lost the war for primary storage. The loud spinning platters of the past have given way to the silent efficiency of Solid State Drives.

Today’s builders and upgraders face a specific standoff: the established Serial ATA (SATA) versus the high-performance Non-Volatile Memory Express (NVMe). While SATA drives maximize compatibility and value, NVMe leverages the PCIe interface to deliver blistering transfer rates directly to the CPU.

However, theoretical throughput does not always translate to a noticeable difference in gaming or browsing.

Technology and Theoretical Speed

The primary distinction between these two storage technologies lies in how they communicate with the rest of your computer. While the storage medium itself, NAND flash memory, is often similar, the language they use to talk to the CPU determines the upper limits of their performance.

The Interface Difference

SATA drives utilize the AHCI driver. This protocol was originally designed for mechanical hard drives with spinning platters.

It treats data like a car on a narrow road. It works reliably but restricts traffic to a single lane. The data must travel through the storage controller before reaching the CPU which creates a bottleneck.

NVMe drives were built specifically for high-speed flash storage. They connect via the PCIe interface which is the same high-bandwidth lane used by graphics cards.

This connection links directly to the CPU. It functions like a multi-lane freeway where data moves in parallel rather than waiting in a single line.

Throughput Limitations

The speed difference becomes stark when looking at raw numbers. The SATA III interface hit its ceiling years ago.

It caps out at approximately 600 MB/s. This limit exists regardless of how fast the underlying flash memory might be.

In contrast, NVMe technology continues to push boundaries with each new generation of PCIe. A standard Gen 3 NVMe drive can reach speeds of 3,500 MB/s.

Newer Gen 4 and Gen 5 drives push this much further and frequently hit speeds between 7,000 and 12,000 MB/s. This represents a theoretical performance increase of up to twenty times that of a standard SATA drive.

Latency and Queue Depth

Speed is not just about how fast a large file moves but how quickly the drive responds to requests. SATA is limited to a single command queue that can hold 32 commands.

If the system requests multiple files at once, the drive must process them linearly.

NVMe takes advantage of the parallel nature of modern CPUs. It supports 64,000 queues, each capable of holding 64,000 commands.

This massive queue depth allows the drive to handle thousands of input/output operations simultaneously. The result is significantly lower latency and a system that feels more responsive under heavy loads.

Form Factors and Compatibility

Physical compatibility is just as important as performance specifications. You need to know if the drive will physically fit into your chassis and plug into your motherboard before making a purchase.

Physical Shapes and Sizes

The most recognizable form factor is the 2.5-inch drive. This looks like a small, flat brick. It fits into the same drive bays used by older mechanical laptop drives and requires cables for both power and data.

These drives are exclusively SATA.

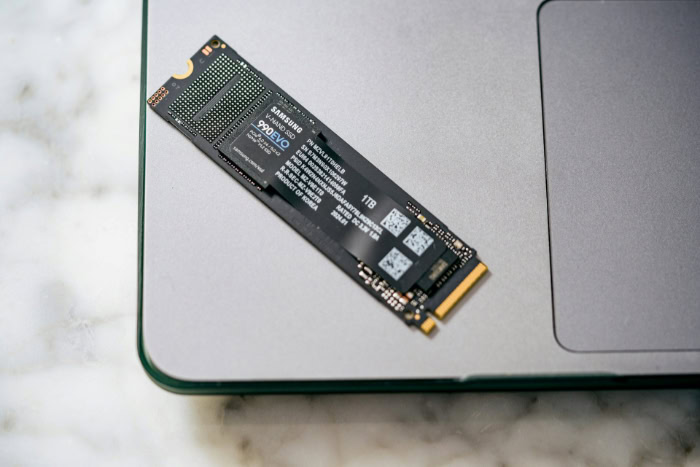

The modern standard is the M.2 form factor. These drives resemble a stick of gum and plug directly into the motherboard to sit flush against the circuit board.

This shape is incredibly compact and eliminates the need for messy cabling. However, the M.2 shape supports both SATA and NVMe interfaces which often leads to consumer confusion.

The M.2 Confusion

An M.2 slot on a motherboard does not guarantee NVMe speeds. Manufacturers produce M.2 drives that still use the slower SATA interface.

If you plug an M.2 SATA drive into your system, it will not run any faster than a bulky 2.5-inch drive connected via a cable.

It is vital to check the specifications of both the drive and the motherboard slot. Many budget laptops or older desktops might have M.2 slots that only support SATA standards.

Installing a high-end NVMe drive in these slots will result in the drive not being recognized or running at severely reduced speeds.

Motherboard Keys and Slots

To prevent users from damaging their hardware, M.2 drives and slots use a system of “keys” or physical cutouts on the connector.

A “B-Key” typically indicates a SATA or older PCIe configuration. These connectors have a notch on the left side.

An “M-Key” indicates support for NVMe and PCIe x4 speeds with a notch on the right side. Most modern NVMe drives use an M-Key.

You must visually match the notch on the drive to the plastic tab in the slot. If you have to force the drive into the slot, it is likely the wrong type.

Real-World Performance: Can You Feel the Difference?

Benchmarks show massive gaps in speed, yet the user experience does not always reflect these numbers. The perceptible difference between these technologies depends heavily on what you do with your computer on a daily basis.

System Boot and App Loading

For general computing tasks, the law of diminishing returns applies. Switching from a mechanical hard drive to a SATA SSD offers a shocking improvement in boot times.

However, the jump from SATA to NVMe is far less dramatic.

A fast NVMe drive might boot Windows one or two seconds faster than a standard SATA SSD. When opening web browsers or office applications, the difference is often indistinguishable to the human eye.

The bottleneck in these scenarios is usually the software processing time rather than the storage speed.

Gaming Scenarios

Gamers often prioritize the fastest components available, but storage speed has a limited impact on raw gaming performance. While an NVMe drive will load levels and game assets faster than a SATA drive, the difference is usually measured in seconds rather than minutes.

Furthermore, storage speed does not increase Frames Per Second (FPS) or graphical fidelity. Once the game assets are loaded into the system RAM and GPU VRAM, the storage drive sits idle.

While technologies like DirectStorage aim to change this by streaming assets directly from an NVMe drive to the GPU, current games see only marginal benefits.

Productivity and Content Creation

This is where the high bandwidth of NVMe becomes necessary. For video editors working with 4K or 8K footage, data scientists managing massive databases, or 3D artists rendering complex scenes, the difference is night and day.

Transferring a 100GB file on a SATA drive might take several minutes. An NVMe drive can finish the same task in seconds.

In these professional workflows, the storage drive is constantly hammered with read and write requests. The deep queues and massive throughput of NVMe allow professionals to scrub through high-resolution timelines without stuttering or delay.

Installation, Thermals, and Build Aesthetics

The physical installation process differs significantly between the two standards. This choice affects how clean the interior of your computer looks and how you manage the temperature inside the chassis.

The difference in form factor dictates the building experience just as much as the performance specifications do.

Managing Cables and Airflow

SATA drives contribute to cable clutter. Each 2.5-inch drive requires two separate cables.

You must route a power cable from the power supply unit and a flat data cable to the motherboard. In a system with multiple drives, this results in a nest of wires that can impede airflow and make the back of the case difficult to close.

NVMe drives offer a much cleaner solution. They mount flush against the motherboard without any wires.

This cable-free design is ideal for builders who prioritize a minimalist aesthetic. It opens up the main chamber of the case which allows intake fans to push air unobstructed across the other components.

Heat Dissipation and Throttling

Heat is rarely an issue for SATA SSDs. The 2.5-inch metal casing acts as a natural heat spreader.

These drives typically run cool even under load and do not require specific cooling solutions. You can mount them behind the motherboard tray or in a drive cage without worrying about temperature spikes.

NVMe drives operate at much higher speeds and generate significant heat in a small surface area. If the controller gets too hot, the drive will intentionally slow down to protect itself.

This phenomenon is known as thermal throttling. To maintain peak performance, most high-speed NVMe drives require a heatsink.

Many modern motherboards include integrated thermal guards or metal plates to absorb this heat, but it is an extra variable the builder must manage.

Installation Difficulty

SATA drives are arguably the most user-friendly storage to install. The connectors are robust and simply snap into place.

The drive itself is usually secured with four standard screws into a drive sled.

Installing an NVMe drive requires more dexterity. The M.2 drive is held in place by a single, tiny screw that is notoriously easy to drop and lose inside the computer case.

You must also align the delicate connector pins correctly and sometimes install a small standoff screw first. While not overly difficult, the process is more fidgety than plugging in a standard SATA cable.

Cost Analysis and Use-Case Recommendations

Economics play a major role in component selection. While performance numbers draw attention, the price per gigabyte often determines the final purchase.

The market has shifted rapidly in recent years and altered the value proposition for both technologies.

Current Market Pricing

The price gap between standard SATA SSDs and entry-level NVMe drives has narrowed significantly. In many cases, a basic NVMe drive costs roughly the same as a quality SATA drive of the same capacity.

Because production has scaled up for M.2 drives, the premium for the faster technology has largely evaporated for 500GB and 1TB models.

For the average builder, paying the same price for significantly faster speeds is an easy choice.

High-Capacity Storage Value

The dynamic changes when looking at mass storage. Manufacturing high-density 2.5-inch drives is still more cost-effective at the upper end of the capacity spectrum.

If you require 4TB or 8TB of space for archiving media or backing up data, SATA remains the superior option. High-capacity NVMe drives are often prohibitively expensive and offer little practical benefit for cold storage where files sit untouched for months.

The Hybrid Approach

You do not have to commit to a single standard. The most cost-effective strategy for many users is a hybrid configuration.

You can install a 1TB or 2TB NVMe drive to house your Operating System and frequently played games. This ensures your computer feels snappy and responsive.

You can then pair it with a larger, cheaper SATA SSD to store photos, videos, and documents. This setup maximizes performance where it counts while keeping the total cost of the build under control.

Conclusion

Choosing between these technologies comes down to matching the hardware to the task. NVMe drives provide exceptional bandwidth and a clean, cable-free aesthetic that modern builds demand.

However, they require specific motherboard support and can run hot. SATA drives offer a cooler, universally compatible solution that remains perfect for mass storage, yet they cannot compete with the raw throughput of their newer counterparts.

If you are upgrading an older laptop or desktop, you are likely limited by what the manufacturer installed years ago. A 2.5-inch SATA SSD is often the only option.

Fortunately, this is still a worthwhile investment that dramatically improves system responsiveness compared to a mechanical hard drive. You do not need the fastest drive on the market to revive an aging machine.

For new builds, the debate is largely settled. With prices nearly identical at lower capacities, NVMe is the logical standard for your operating system and main applications.

It unlocks the full potential of modern processors and ensures your build is prepared for next-generation software. While SATA still has a place for cheap, high-capacity archiving, the era of the primary boot drive belongs to NVMe.
