Analog vs. Digital Signals: Why the Difference Matters

Every time you stream music, check your phone, or adjust a thermostat, you rely on silent electrical processes that shape your daily interactions with technology. These interactions depend on two fundamentally distinct methods of transmitting data: analog and digital signals.

Analog signals represent information as continuous, fluctuating physical quantities, mirroring the natural, fluid variations of sound and light. Digital signals, by contrast, translate information into discrete binary codes of zeros and ones, offering a structured, highly reliable way to store and transmit data.

Modern electronics constantly balance these two systems to translate the physical environment into a format that microchips can process.

Fundamental Principles and Waveform Properties

To design or interact with modern electrical systems, one must first appreciate how electrical energy represents data. Signal transmission relies on manipulating physical phenomena, such as electromagnetic waves or voltage levels, to carry message data across a distance.

By observing these signals, engineers categorize them into continuous waves or discrete pulses, forming the bedrock of all electrical communication.

The Continuous Nature of Analog Signals

Analog signals represent information through continuous physical quantities that change smoothly over time. In nature, physical phenomena like temperature, air pressure, and ambient light do not jump abruptly from one state to another; instead, they transition through an infinite sequence of intermediate values.

For example, when measuring room temperature, the mercury in a thermometer moves fluidly through every fraction of a degree.

In electrical circuits, these physical states are converted into voltages or currents that mirror these smooth changes. The standard mathematical model for this continuous variation is the sine wave.

A sine wave is defined by three fundamental parameters: amplitude, which measures the peak strength or height of the wave; frequency, which indicates how many complete wave cycles occur per second; and phase, which describes the wave’s relative position in time. Because these waves are continuous, any given interval on an analog signal contains an infinite number of possible values, allowing for highly detailed representations of physical events.

The Discrete Nature of Digital Signals

Digital signals diverge from the continuous model by restricting information to specific, discrete states. Instead of tracking a smooth, infinite spectrum, digital systems represent data using binary code, which relies on two distinct states: zero and one.

These states typically correspond to high and low voltage levels within an electrical circuit.

Visually and mathematically, this behavior is represented by a square wave, which transitions abruptly between the high and low states. Unlike the gradual curves of a sine wave, a square wave features sharp, vertical transitions, representing nearly instantaneous state changes.

A primary metric of a square wave is its duty cycle, which measures the ratio of time the signal remains in the high state relative to the total period of the wave. By organizing these high and low states into synchronized sequences, digital systems represent specific values in step-like intervals rather than smooth, unbroken transitions.

Visualizing and Measuring Signal Types

Engineers use specialized instruments to analyze and measure these different signal types. To observe continuous analog waveforms, technicians rely on oscilloscopes.

An oscilloscope plots voltage changes over time on a screen, revealing the smooth curves, peaks, and valleys of the physical wave. This visualization allows for the precise measurement of amplitude and wave symmetry.

In contrast, digital signals are best analyzed using logic analyzers. Rather than showing fine voltage fluctuations, a logic analyzer decodes binary states, presenting a timeline of logical ones and zeros, pulse timing, and data bus interactions.

Mathematically, these two signal types require different frameworks. Analog systems utilize continuous time-domain equations, where the signal value is defined for every fraction of a second.

Digital systems rely on discrete-time equations, where data exists only at specific, sampled intervals, represented as sequences of individual numbers.

Applications in Everyday Technology

The choice between analog and digital formats shapes how people experience media, communicate across distances, and measure the surrounding world. Both methodologies exist in everyday devices, though their underlying mechanisms differ dramatically.

Comparing these technologies highlights how engineering transitions from physical media to electronic data.

Audio and Video Media

Sound recording showcases the distinct operations of analog and digital media. Analog media, such as vinyl records and magnetic cassette tapes, physically preserve sound waves.

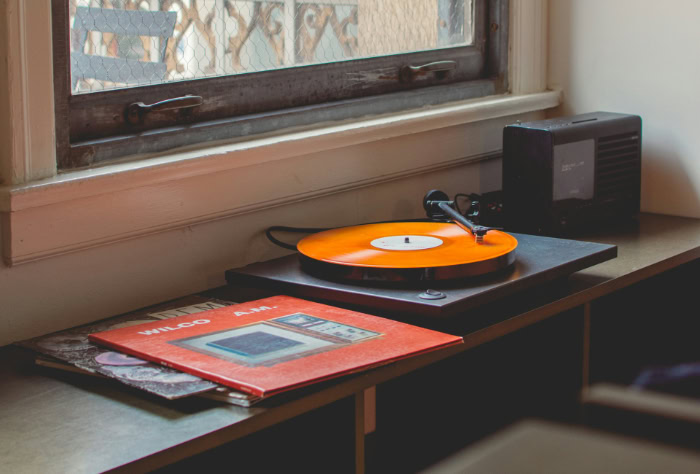

A vinyl record groove mirrors the physical sound wave, which a turntable needle traces to reproduce the audio directly. Similarly, magnetic tape stores continuous variations in magnetic orientation that correspond to the original sound.

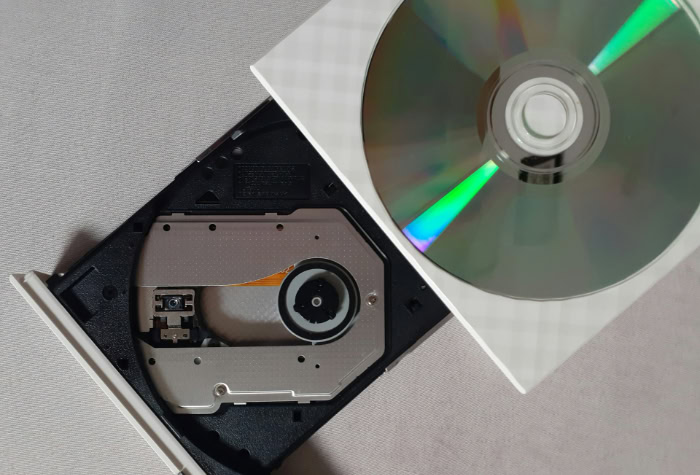

Digital formats, including compact discs (CDs), MP3s, and FLAC files, replace physical grooves with numerical representations. These files store audio as a sequence of binary values, which are read by lasers or processors to reconstruct the sound.

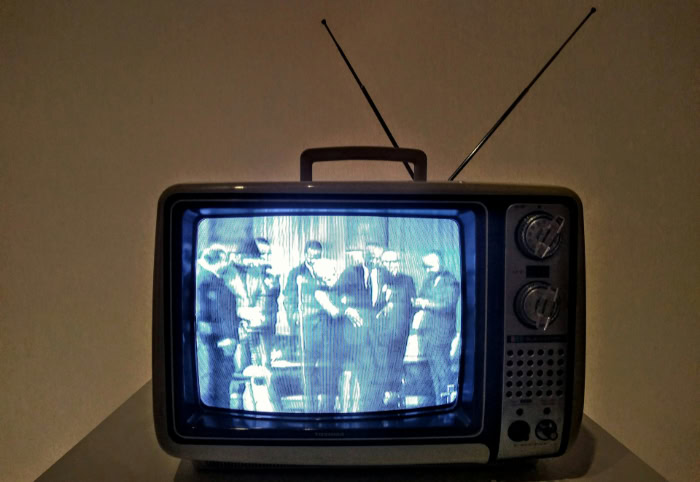

Video technology followed a similar path. Early television broadcasts used analog standards like NTSC and PAL, which encoded picture and sound into continuous radio waves.

Modern video distribution relies on digital high-definition standards, such as HDMI connections and ATSC streaming, which pack compressed digital video data packets into precise, high-speed streams, ensuring sharp images without the static interference common in older systems.

Telecommunications and Networking

Telecommunications infrastructure has experienced a profound shift from continuous to discrete transmission. Traditional landline telephone systems, often called the Plain Old Telephone Service (POTS), transmit the human voice as a continuous, varying electrical current over copper wires.

Modern Voice over IP (VoIP) systems replace this method by converting the voice into digital packets, which travel across local networks and the internet alongside other computer data.

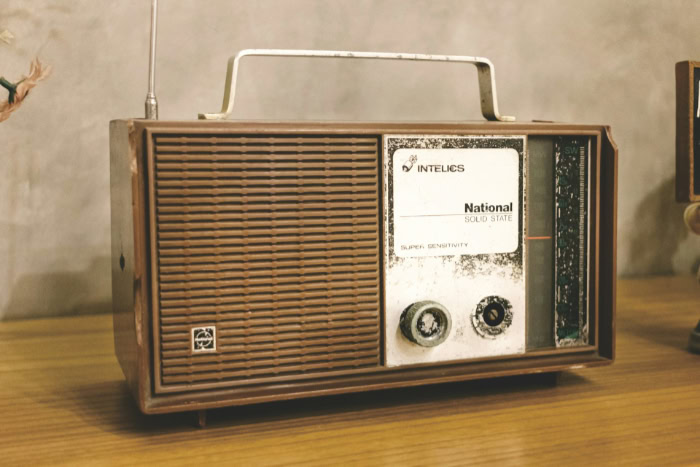

Wireless broadcasting mirrors this division. Standard AM and FM radio stations broadcast continuous electromagnetic waves, where the audio signal modulates either the amplitude or the frequency of the carrier wave.

In contrast, modern cellular networks, including LTE and 5G, transmit digitized data over high-frequency bands. These networks process and route voice calls, text messages, and web traffic as discrete binary packets, maximizing data efficiency and connection reliability.

Instrumentation and Sensor Technology

Measurement devices also reflect these two technical philosophies. Traditional analog gauges, such as mercury thermometers and dial barometers, rely on physical properties that react directly to environmental changes.

A rise in temperature physically expands mercury, pushing it up a calibrated glass tube, while changing air pressure physically moves a needle across a dial.

Digital measurement devices, such as electronic multimeters and digital sensor interfaces, replace these physical indicators with electronic displays. These instruments use sensors to detect physical changes, convert those changes into binary numbers, and display the exact numerical value on a screen.

This approach simplifies reading and allows sensors to transmit data directly to microcontrollers for automated processing and storage.

Technical Advantages and Limitations

Deciding whether to implement an analog or digital design requires a balance of trade-offs regarding signal quality, storage space, and accuracy. Each format possesses inherent strengths that make it ideal for specific scenarios, along with vulnerabilities that engineers must mitigate.

These differences dictate how signals perform when exposed to environmental interference and system constraints.

Signal Integrity, Noise, and Degradation

A primary difference between the two signal types is how they respond to electromagnetic interference (EMI). Because analog waveforms are continuous, any electrical noise or interference introduced along the transmission path alters the shape of the wave.

The receiving equipment cannot easily distinguish between the original signal and the added noise, resulting in permanent degradation of the output quality, such as static in a radio broadcast.

Digital signals possess strong noise immunity. Because they rely on discrete high and low states, a digital receiver only needs to determine whether the incoming voltage is closer to a one or a zero.

Minor fluctuations caused by interference do not change the interpreted value of the data. Furthermore, digital systems employ error-detection and error-correction algorithms, enabling the receiver to identify and fix transmission errors without requiring the data to be resent.

Storage, Compression, and Processing Efficiency

Storing and processing analog signals requires specialized physical media and hardware, which presents physical space constraints. Replicating or modifying an analog signal requires passing it through physical circuitry, which inevitably introduces minor distortions and noise with each generation of copying.

Digital data offers immense advantages in storage and processing efficiency. Because digital signals exist as binary code, they can be compressed using mathematical algorithms, reducing the physical storage space required on solid-state drives or magnetic disks.

Additionally, digital files can be encrypted, copied indefinitely without loss of baseline information, and manipulated via software. This flexibility allows engineers to filter, amplify, or modify digital signals using standard computer programming rather than complex physical components.

Fidelity vs. Quantization

Despite the advantages of digital processing, analog signals provide a complete and true representation of natural sounds and physical inputs. Because physical events are continuous, an analog recording captures the entire wave without missing any details, providing a level of warmth and fidelity that many audiophiles prefer.

Digital discretization introduces a phenomenon known as quantization error. When a continuous wave is converted into discrete steps, the system must round each continuous value to the nearest available binary number.

This rounding process creates a minor mismatch between the original wave and the digital representation. While high-resolution digital systems minimize this error to the point where it is imperceptible to humans, a microscopic loss of detail remains inherent to all digital representation.

The Conversion Process: Bridging Analog and Digital

Because the physical world is analog and modern computational systems are digital, electronic devices must constantly bridge the gap between these two formats. Specialized conversion hardware translates continuous environmental inputs into binary data and back again.

This translation process relies on strict mathematical rules to maintain accuracy and prevent signal distortion.

Analog-to-Digital Conversion (ADC)

To convert an analog signal into digital data, an Analog-to-Digital Converter (ADC) performs three primary tasks: sampling, quantizing, and encoding. Sampling involves capturing the value of the continuous wave at fixed, precise time intervals.

The frequency of these measurements is governed by the Nyquist-Shannon sampling theorem, which states that to accurately reconstruct a signal, the sampling rate must be at least twice the highest frequency present in the wave. Failing to meet this threshold leads to aliasing, a type of distortion where high-frequency signals masquerade as lower-frequency waves.

Once sampled, each voltage level undergoes quantization, where it is mapped to the nearest available numerical value. The precision of this mapping depends on the system’s bit-depth.

A higher bit-depth provides more binary steps, reducing quantization error and allowing the ADC to record subtle changes in the original signal.

Digital-to-Analog Conversion (DAC)

To make digital data usable for human senses or analog systems, a Digital-to-Analog Converter (DAC) reverses the conversion process. The DAC reads binary step-like data and converts it back into a series of corresponding voltage levels.

Because the raw output of this process resembles a jagged staircase, it does not immediately match the smooth, continuous wave of the original input.

To recreate a natural waveform, the DAC passes the reconstructed signal through a smoothing or low-pass filter. This electrical filter removes the sharp high-frequency transitions of the step-like data, smoothing the jagged edges into a continuous, flowing wave.

This step is essential for restoring audio signals, ensuring that the sound exiting a speaker is free of harsh digital distortion.

Hardware Interfaces in Modern Circuits

Modern electronic systems embed converters directly into microcontrollers, system-on-chip processors, and specialized audio codecs. These hardware interfaces must maintain precise timing to prevent signal degradation.

System clocks play an essential role by coordinating the exact moments when samples are taken or reconstructed. Even minor timing variations, known as jitter, can distort the reconstructed signal, making high-precision clocks critical for high-fidelity audio and rapid data transmission.

Engineering Criteria for System Selection

Selecting the appropriate signal format is a critical engineering decision that dictates a system’s overall performance, physical footprint, and manufacturing cost. Engineers must weigh the physical limits of transmission lines against the processing overhead required to handle digital data.

This balance determines whether a project favors simple analog circuitry or a sophisticated digital architecture.

Transmission Distance and Signal Regeneration

Transmission distance is a major factor in signal selection. As any electrical signal travels over a physical cable, it suffers from attenuation, meaning it gradually loses strength.

For analog signals, this loss of strength is difficult to fix over long distances. Amplifying an attenuated analog signal also amplifies any electrical noise collected along the way, degrading the signal further.

Digital signals excel over long distances because they can be cleaned and regenerated. Instead of simply amplifying a degraded wave, digital repeaters read the incoming signal, determine the original binary states, and transmit a brand-new, clean copy of the digital stream.

This capability allows digital networks to span across continents and oceans with zero accumulated signal degradation.

Bandwidth and Channel Capacity

Bandwidth limits shape how much information a channel can carry. Transmitting dense analog frequencies requires continuous spectrum allocation, which can limit the number of individual signals a medium can support simultaneously.

Digital systems overcome this limitation through multiplexing, a technique that allows multiple digital signals to share a single transmission channel. By dividing transmission time into tiny slices or assigning unique digital codes, a single physical fiber-optic cable or wireless band can carry thousands of independent conversations or data streams at once.

This dramatically increases channel capacity and spectral efficiency.

Design Complexity and Cost

Despite the technical superiority of digital systems in many applications, simple analog circuits remain highly practical for cost-effective, immediate solutions. A basic analog amplifier or sensor interface requires only a few resistors, capacitors, and transistors.

These circuits operate without programming, software development, or boot-up times, making them ideal for budget-sensitive or straightforward tasks.

Implementing a digital system introduces substantial design overhead. It requires converters, microprocessors, firmware programming, and stable power supplies.

For complex tasks, this added cost and engineering effort are justified by the system’s flexibility, but for basic electronic functions, analog simplicity remains a highly efficient choice.

Conclusion

Analog and digital signals represent two distinct methodologies for handling information, defined by the contrast between continuous fluid variations and discrete binary states. While analog waveforms capture the physical environment with raw fidelity, they remain highly susceptible to noise and degradation over long distances.

Digital signals solve this issue by translating data into binary steps, allowing for efficient processing, data compression, and error-free transmission. Rather than one replacing the other, modern electronics rely on the cooperation of both systems.

Microcontrollers and communication hardware continuously convert analog inputs to digital data for processing, then convert them back to drive physical components like speakers and displays, ensuring that both technologies remain essential to electronic design.
